Picoscope 2205 fried "ground bridge"

Post any questions you may have about our current range of oscilloscopes

Picoscope 2205 fried "ground bridge"

Postby HansM » Wed Jun 06, 2012 11:34 am

Hi,

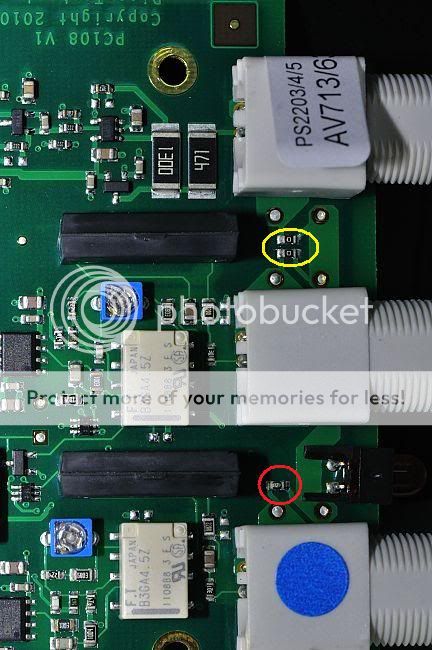

I accidentally fried a smd component when connecting +12v to channel A ground. There is a component that look fried, and picoscope works fine when shorting this component. Anyone knows what kind of component and values this is? similar components on channel B measures 0 ohm, making me believe it is some kind of smd fuse? See attached picture, the one in the red circle is fried and the ones in yellow circle is similar!
/Hans
HansM
Newbie

Posts: 0
Joined: Wed Jun 06, 2012 11:22 am

Re: Picoscope 2205 fried "ground bridge"

Postby Hitesh » Wed Jun 06, 2012 12:46 pm

Hi Hans,

Please contact us on our Helpdesk (support@picotech.com) with your contact and address details plus the serial number of the device and we can issue you with a returns number to send it in for repair.

Thanks,
Hitesh

Technical Specialist
Pico Technology
Hitesh
Site Admin
Site Admin

Posts: 2058
Joined: Tue May 31, 2011 3:43 pm
Location: St. Neots, Cambridgeshire

Re: Picoscope 2205 fried "ground bridge"

Postby TinWhisker » Thu Jun 07, 2012 8:13 am

HansM wrote:Anyone knows what kind of component and values this is? similar components on channel B measures 0 ohm, making me believe it is some kind of smd fuse? See attached picture, the one in the red circle is fried and the ones in yellow circle is similar!


It is indeed a 0 Ohm resistor and they are used as bridges. In this case, they seem to be used as fuses too, yes.

However, as above - send it for repair though, as I'd expect it'll be tested for any further damage that may not be immediately obvious.
TinWhisker
Newbie

Posts: 0
Joined: Fri Dec 16, 2011 10:48 am

Re: Picoscope 2205 fried "ground bridge"

Postby Martyn » Thu Jun 07, 2012 11:01 am

TinWhisker wrote:It is indeed a 0 Ohm resistor and they are used as bridges. In this case, they seem to be used as fuses too, yes.

Exactly what it is for, just easier to use these than a piece of wire. You can send it in if you want us to look at it or just replace the part yourself.
Martyn
Technical Specialist
Martyn
Site Admin
Site Admin

Posts: 2344
Joined: Fri Jun 10, 2011 8:15 am
Location: St. Neots
